CAPE CORAL DOCK DESIGNSREAL SITEDRAFT LAYOUT FAMILIES
Explore dock configurations produced from SiteDraft's actual Cape Coral template and planning workflow. These examples show how waterfront dimensions, vessel information, lift requests, walkways, termini, and walkarounds shape the project package contractors receive.
DESIGN EXAMPLES
The examples are conceptual planning configurations, not construction plans or promises that a layout will be approved at a particular property.

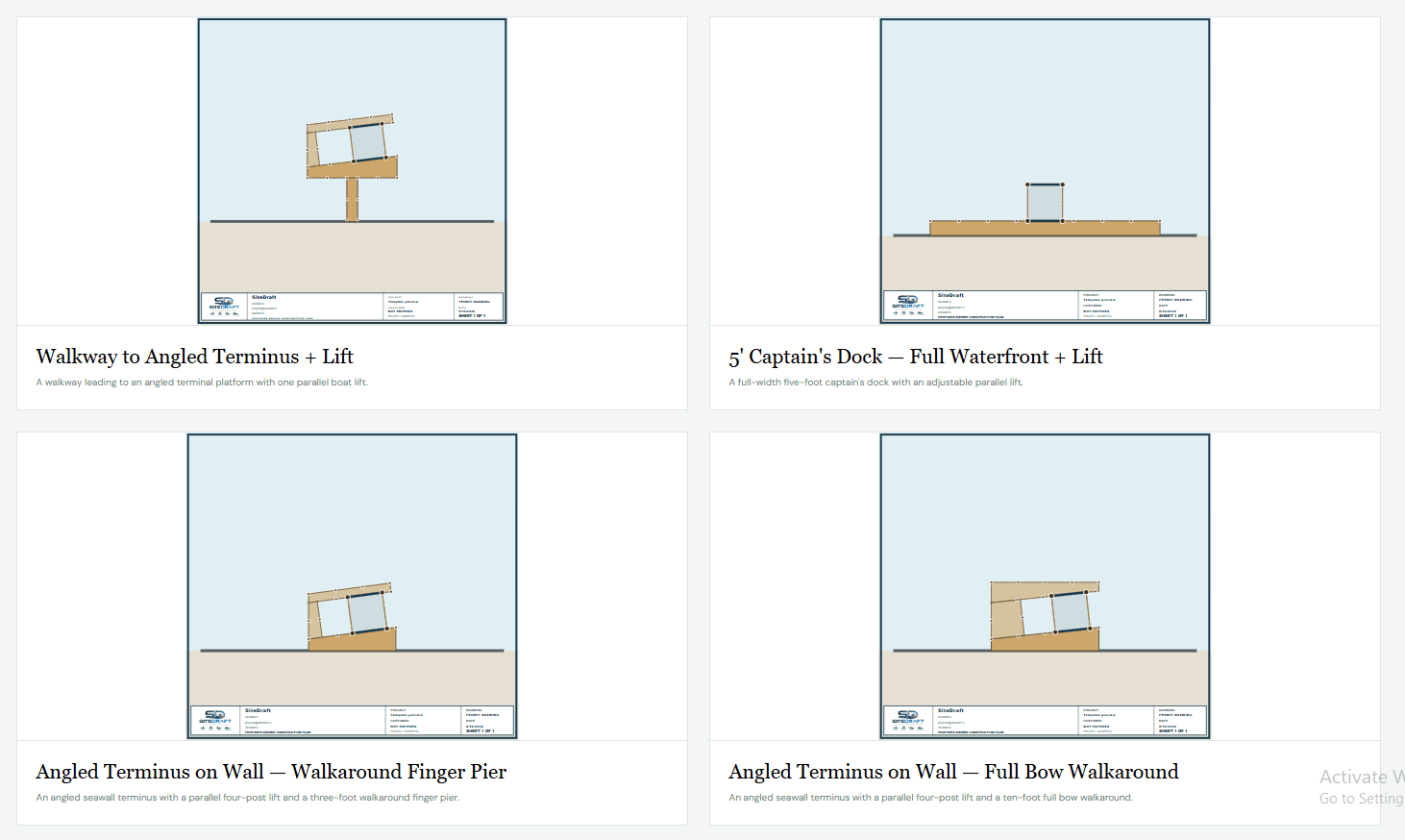

A seawall-connected platform that wraps around a parallel vessel slip and integrates the requested four-post lift into the same project drawing.
When to explore itUseful when the homeowner wants access along both sides and around the bow of a known vessel.
A narrower walkway reaches an angled terminal platform with a parallel lift configuration.
When to explore itUseful when the main activity platform belongs farther waterward and the selected template fits the preliminary envelope.
A nearshore, full-waterfront captain's-dock family paired with an adjustable parallel lift.
When to explore itUseful for homeowners exploring a long, shallow waterfront deck rather than a deeper terminal platform.
An angled seawall terminus combines a vessel slip, parallel lift, outside finger pier, and connection deck.
When to explore itUseful when a straight parallel layout is not the only configuration being evaluated.
The angled slip retains a complete bow-side deck with the connected lift and vessel represented in the same geometry.
When to explore itUseful when additional access around the bow is a project priority and the site supports the configuration.

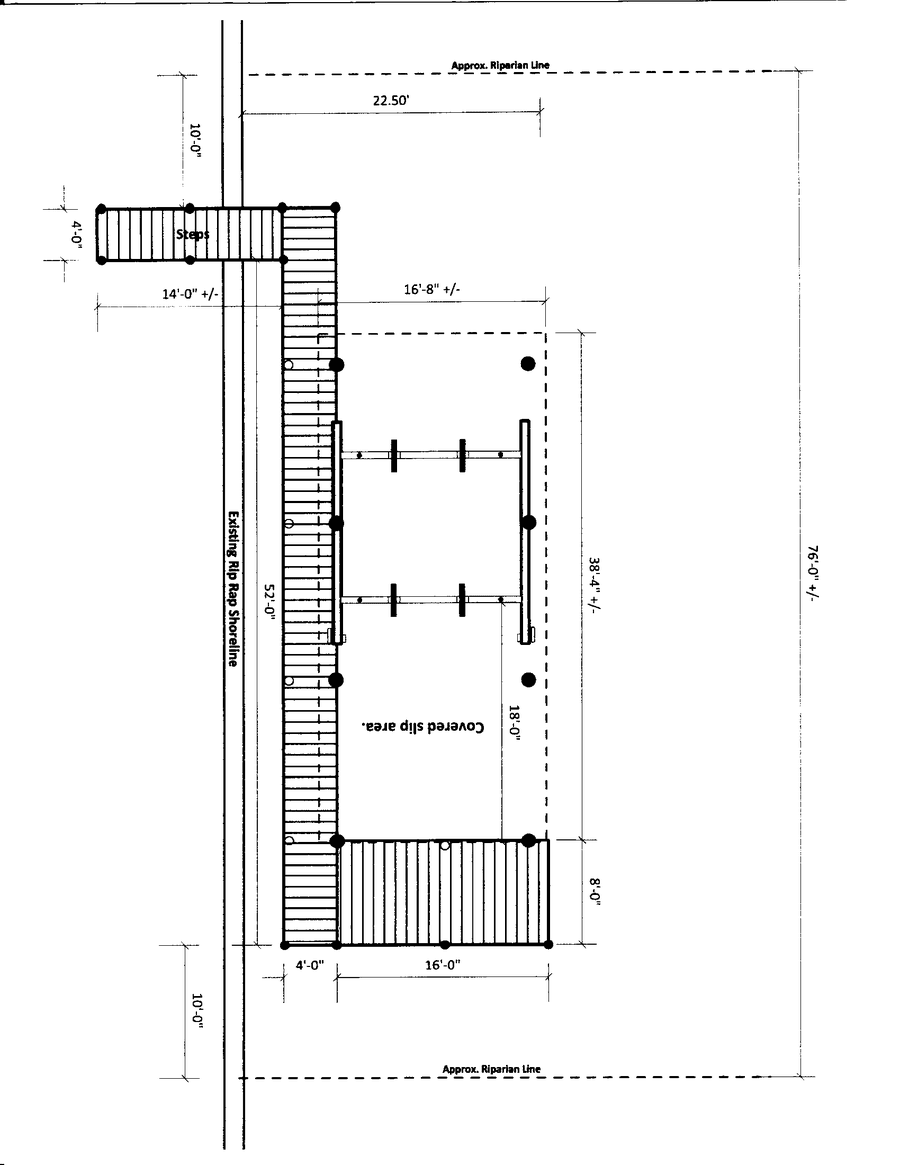

The confirmed SiteDraft drawing carries dimensions, piles, lift beams, vessel, setback references, and project totals into a saved contractor package.
When to explore itUseful for comparing contractor pricing and specifications against one defined project scope.
FROM EXAMPLE TO YOUR PROPERTY
SiteDraft filters the Cape Coral catalog using the requested dock, lift, tiki, canopy, seawall, rip-rap, and demolition scope. Waterfront length, approximate waterway width, vessel LOA and beam, lift count, and shoreline conditions then help establish the relevant planning configuration.
Every confirmed package must still be verified by the selected contractor, surveyor, engineer, and permitting authorities as applicable.
PLAN · ESTIMATE · BID · BUILD
